Large fav-icons in Windows 7 taskbar

New features in IE9 and how to prepare your web for them

Internet Explorer 9 has a tighter integration with Windows 7 than any other browser currently available (October 2010). It allows users to pin web sites to their task bar or to Start menu as ordinary applications.

Pinning a web site

Windows 7 task bar got better with Internet Explorer 9 ability to pin web sites to it. Other web browsers will undoubtedly follow.

To pin a web site, drag and drop its tab onto the Windows 7 task bar. A new button appears on the task bar showing the web favicon.

Additional options may appear after hovering over it or right-clicking on it. That depends on the web site. It may define shortcuts or commands using meta-tags in page header or javascript.

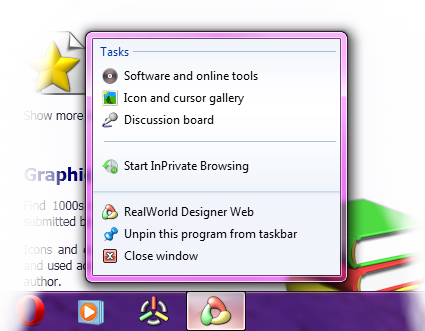

How to try it right now? If you are running Windows 7 and IE9, drag and drop this page on the task bar and then right-click the button.

rsrc/pinned-web.png image

As you can see, there are links to the Software, Gallery, and Forum sections. All with their own icons.

How to make use of the new features in IE9

Create a larger fav-icon

Gone are the days when using a simple 16x16 icon was enough for a good favicon. To deliver the best experience to the users who choose to pin your web (and you should, they are your fans!), your fav-icon should include 48x48 and 32x32 sizes in addition to the standard 16x16 pixels image.

To create IE9-compatible fav-icon from image, use our online image to icon converter. Choose custom icon with 16,32,48 sizes.

If you do not have a suitable image, you may draw an icon for example in RealWorld Icon Editor.

Why do you need 16x16, 32x32 and 48x48 sizes?

If you are using standard resolution (96 DPI), size of window caption icons is 16x16 pixels and size of task bar icons is 32x32 pixels. Also, for pinned web sites, a 24x24 pixels icon is displayed to the left of the Backward/Forward buttons.

With high-resolution displays being fairly common these days, many users choose to run their Windows in 120 DPI or even 144 DPI. All objects, including fav-icons, are 125% or 150% larger in these modes.

Define additional properties

Users may not be on the home page of your web when they are pinning it. It would be preferable if the pinned shortcut took them to the home page. You should specify the default url and name of your pinned button using the following attributes:

<meta name="application-name" content="Short name" />
<meta name="msapplication-starturl" content="http://www.yourweb.com/" />

You can customize the button even more using the following attributes, but I do not think they are overly useful and skipping them is no big deal.

<meta name="msapplication-tooltip" content="What is my site about? I do not remember" />
<meta name="msapplication-window" content="width=800;height=600" />
<meta name="msapplication-navbutton-color" content="red" />

Add shortcuts

To add shortcuts to the context menu of your task bar button, place the following line into the <head> section of your page:

<meta name="msapplication-task" content="name=Hot news;action-uri=http://www.yourweb.com/hot-news.html;
icon-uri=http://www.yourweb.com/hot-news.ico"/>

Customize the content attribute with the name, uri, and optionally icon-uri of your shortcut.

To add multiple shortcuts, add the <meta> attribute to your <head> section multiple times with different content.

The name of the attribute suggests that the shortcut should represent a task. Consider that a recommendation.

There is more

Internet Explorer 9 also allows web sites to dynamically specify categories and shortcuts in category via javascript.

Another option is the ability to place an overlay icon to the main web site icon on the task bar. The icon is also controlled by javascript and it can be used to deliver alerts to the user ('new personal message', 'reply to forum topic', etc.)

To learn more about these options, visit http://msdn.microsoft.com/en-us/library/gg131029(VS.85).aspx

Summary

The absolute minimum a web site owner should do to support new features of IE9 on Windows 7 is to add larger fav-icon and specify the name and default url for the pinned button. Using the remaining features can help certain types of web sites, but living without them is no big deal.
